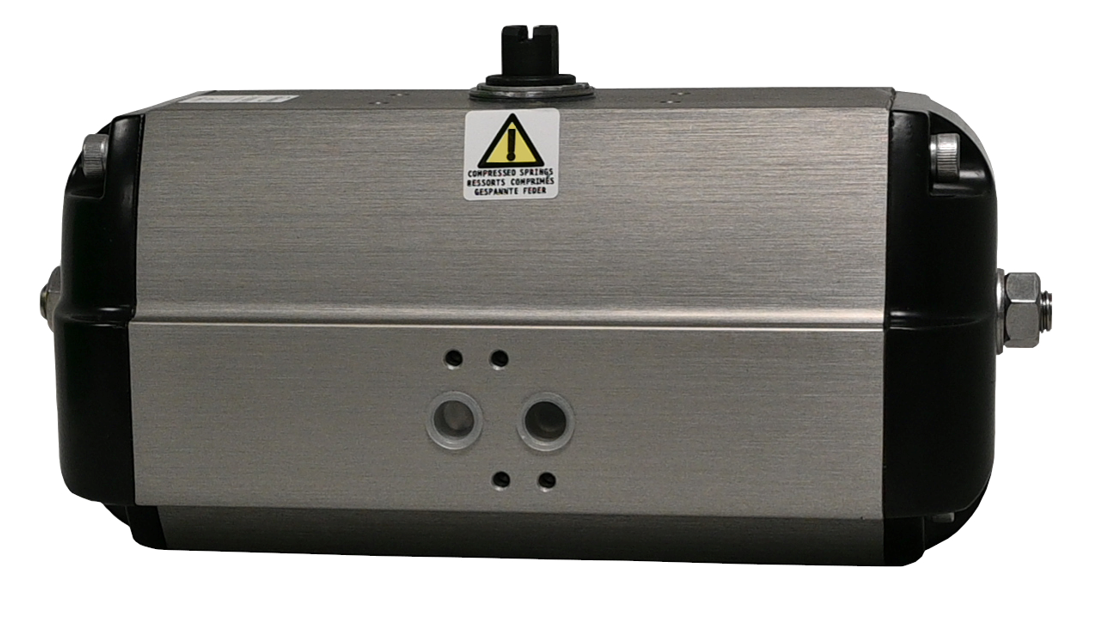

Pneumatic Actuator Series MC

Robust and compact design

Description

The pneumatic quarter-turn actuator series MC has proven itself in terms of reliability in process plants.

The robust and compact design and the technical solutions used make this product extremely reliable under the toughest operating conditions. The comprehensive range of accessories for the actuator, originating from our production, allows a single point of contact for the components of the entire automation system and the valves.

The bush and ring of the shaft guide are interchangeable and designed for use in the toughest operating conditions. The special choice of materials allows the best working conditions between pinion and housing.

Steel shaft with special surface treatment Steel shaft with special surface treatment by gas nitriding, giving higher corrosion resistance compared to normal material treatment.

Exact end position adjustment Independent mechanical adjustment of opening and closing (+/-5%) guarantees exact adjustment of both end positions. Stepless adjustment 0° - 90° on request.

Stable spring force Concentric springs: This proven reliable solution has been used by us for over 10 years and guarantees a long functional life without fatigue of the spring force.

Stainless steel screws and nuts Stainless steel screws, nuts and washers
