Technical data

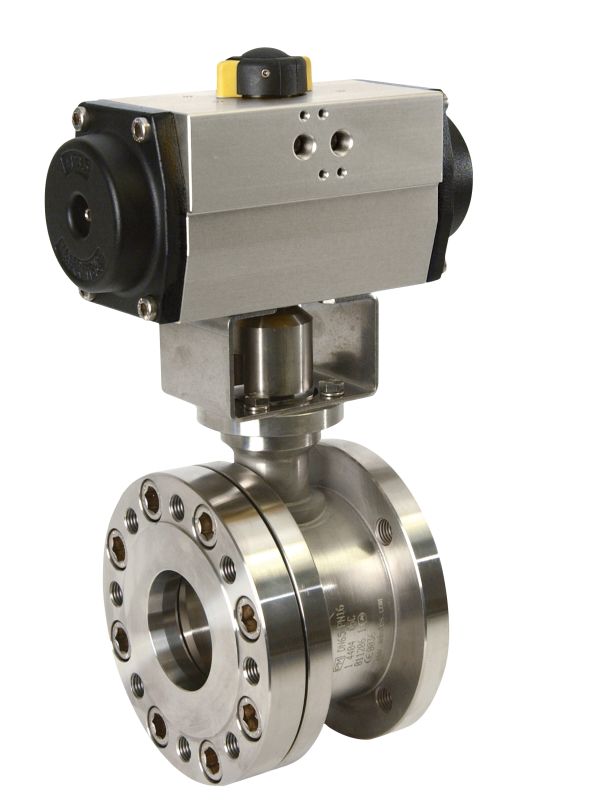

Ball segment valve with precise sealing function due to the eccentric technology reliable tightness in the closure due to permanent pressure in the seat (valve closes without stop), opening of the full cross-section without media containment and without dead space.
- Sizes: DN 25 to DN 200
- Pressure ratings: PN 10 to PN 40 or ASME Class 150/300 lbs (other pressure ratings on request)
- Operating temperature: - 60 °C to + 400 °C
- Connections: flanges according to EN 10921, face-to-face EN 558 and ANSI B16.10
- Automation interface: according to DIN EN ISO 5211:2001
Industries and applications
The ball segment valve offers application possibilities for media that are difficult to control:
- Resinous media
- Adhesives
- Powders
- Dyestuffs
- Paper materials
- Sludge transport
- Bulk materials
- Fly ash
