Technical data

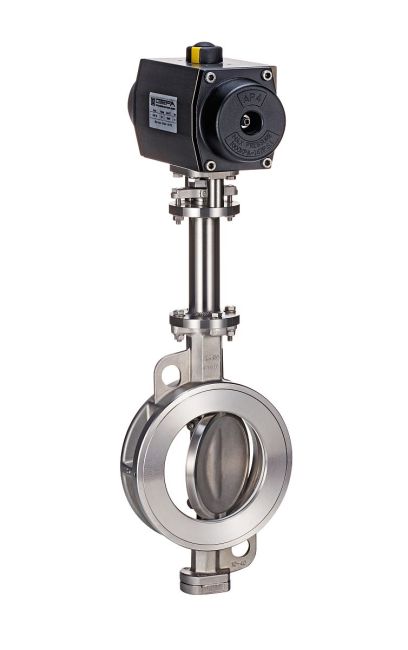

Double offset valve for the use down to -196°C with cryogenic stem extension as pressure chamber.
For installation between flanges EN 1092, PN 10/16/25/40, PS 10 ASME Cl 150/300, PS25.
- Sizes: DN 50 - DN 600
- Temperature range: - 200 °C to + 200 °C
- Face-to-face dimension: DIN EN 558 line 20 API 609 table 1
- Mounting flange: DIN EN ISO 5211
- Test: DIN EN 12266 P10 P11 P12 F20
- Marking: DIN EN 19, AD 2000
Industries and applications
- Water / Sewage
- Engineering
- Food industry
- Chemical, petrochemical and pharmaceutical industry
- Colouring, Varnish, Dyeing factories
